Everything you need to create a Touring Quality 4 Way Handheld Wireless Mic System

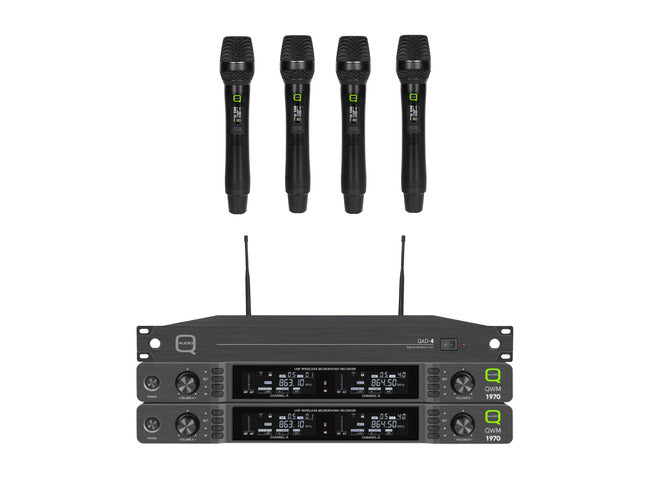

The Q-Audio QWM1970HH-4W is a complete four-way wireless package designed for venues and teams that need reliable, easy-to-use radio mics across multiple performers. At its heart are two dual true diversity receivers paired with four Handheld transmitters.
To keep RF stable across all channels, the bundle includes the Q-Audio QAD-4 antenna distribution unit and the required BNC leads. The QAD-4 routes a pair of antennas to up to four diversity receivers, simplifying cabling and improving reception in busy RF environments. It is a dual 1:4 active splitter designed for wideband UHF operation, with loop-through for system expansion and DC power distribution for your receivers
System
- Complete 4 way handheld package
- Supplied in channel 38 (606 - 614MHz)
- 2x QWM 1970 True Diversity Dual Receivers
- 4x QWM 1970BP Handheld Transmitters
- 1x QAD 4 Antenna Distribution Unit
Receiver
- Frequency: 606 -614 MHz
- Bandwidth: 8MHz
- Dynamic Range: 96dB
- Distortion: <0.1%
- Signal/Noise Ratio: 96dB
- Frequency Response: 30Hz - 20kHz ±2dB
- Signal/Noise Ratio: 90dB
- Receiving Sensitivity: -95dBm
- Power Supply: DC 12V 1A
Handheld Transmitter
- Frequency: 606 - 614 MHz
Frequency Switching: IR Sync
Harmonic Radiation: <- 50dBc
Output Power: Up to 30mW
Batteries Required: 2x1.5V AA batteries
Battery life: >5h
Antenna Distribution
- Bandwidth: UHF 450 - 1000 MHz
- Antenna In/Link Out Connections: BNC
- Antenna Inputs: 2
- Antenna Link: 2
- Antenna Outputs: 8
- Antenna Power (via Antenna Input): 9v 100mA
- Power Input Connection: 1x 12v DC Jack
- Power Output Connections: 4x 12v DC Jack
PRODUCT DESCRIPTION

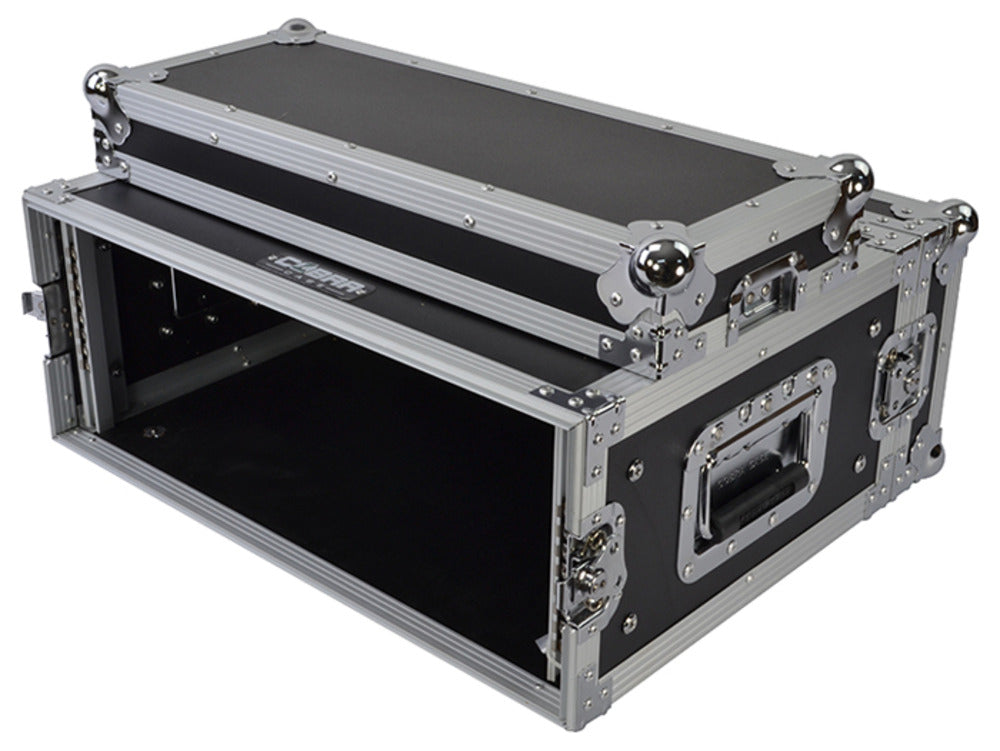

4u SHALLOW TOURING DUTY RACK CASE
Heavy duty, durable 4U flight case for effects and control equipment. Designed for touring and studio applications. These shallow cases are for equipment up to 350mm deep. Front and back lids are removable and there are rack fixing bars front and back. Front and back panel controls and connectors can protrude into the lids, so equipment can be 400mm in overall depth. Constructed from black laminated 7mm ply with strong catches and fittings.
KEY FEATURES
- Compact 19" Rack Case
- Strong Hardware
- Laminated Ply Construction
- Supplied With Fixings
Dimensions:
Max Equipment Depth - Exc controls and connectors 350mm - Inc controls and connectors 400mm
Dimensions (WxHxD):
483 x 400 x 176
