- 320mm (12’’) custom woofer with improved efficiency and linearity
- 25mm (1”) HF custom compression driver
- 90°H x 60°V constant directivity horn
- 2-way bi-amplified system in Bass-Reflex
- 350Wrms class D amplifier for LF and 100Wrms for HF
- High efficiency switch mode power supply
- On-board Digital Signal processing with dynamic equalizations and protections for high SPL and high reliability
- 4 DSP preset for maximum acoustical flexibility
- Polypropylene enclosure with integrated handle
- 2 x M10 anchoring points
- 35mm Internal top hat
- Net weight 13.7kg
- Net dimensions 410x663x387mm (W/H/D)
-
Configuration2 WayFrequency response55Hz - 20kHzLow frequency woofer12 inchHigh frequency driver1 inchMaximum SPL cont/peak123 / 127dbDispersion90 x 60 (HxV)Input impedance8 ohmCrossover frequency2 kHzInput connector2x Speakon NL4 In & ThruNet Dimension (WxHxD)410 x 663 x 387mm / 16.14 x 26.10 x 15.23inNet Weight14.1kg / 31.8lbTransport Dimension (WxHxD)495 x 740 x 475mm / 19.48 x 26.10 x 18.7inTransport Weight17.2kg / 37.91lb\AC Power requirements400VABuilt-in amplifier LF/HF350/50W RMSBuilt-in amplifier peak LF/HF700/200WPower cord5m IEC

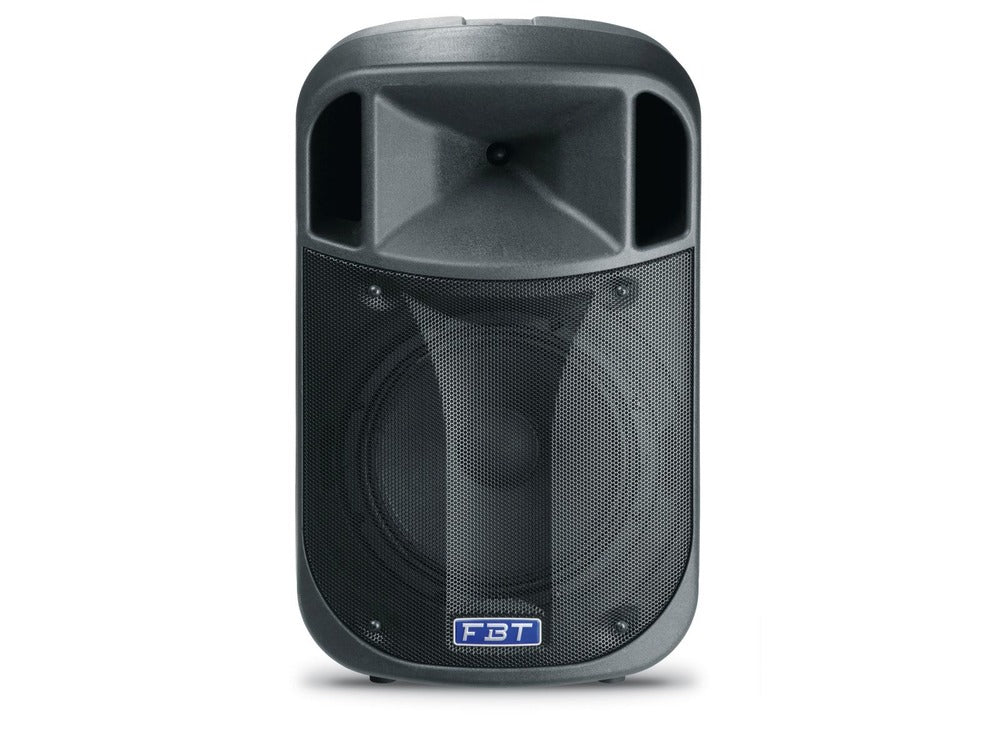

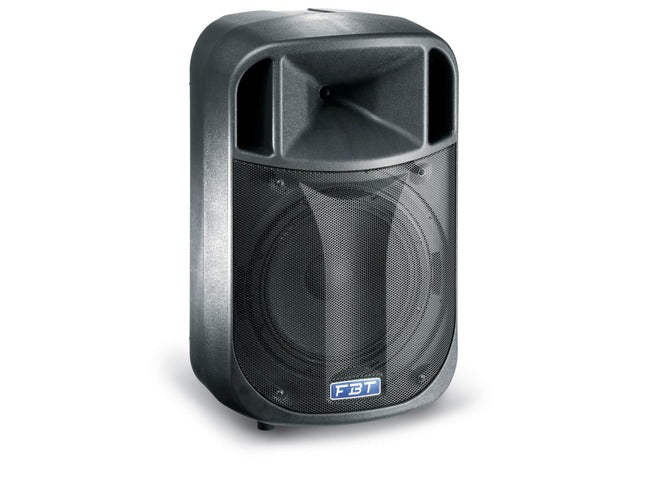

FBT J12A Active 12 inch Full Range P.A. Speaker - Made in Italy
£499.00
Skip to product information
FBT J12A Active 12 inch Full Range P.A. Speaker - Made in Italy
£499.00
FBT J12A - Processed Active Monitor
350W+ 100W RMS – 128dB SPL
More technology for improved performance and quality value for money
The new J series is a technologically advanced range of products that improves on the performance of the previous Jolly line. The new J series is a competitive, value for money range of speakers.
The range is based on the development of three new high efficiency class-D amplifiers with power specifications of 350 + 100W for the J 15A & J 12A, 200 + 50W for the J 8A and 80 + 40W for the J 5A.
These amplifiers have been designed 'from the ground up' in FBT’s R&D laboratories.
The largest amplifier model that equips the J 15A and J 12A has a switch mode power supply as well as a digital signal processor with 4 pre-sets.
